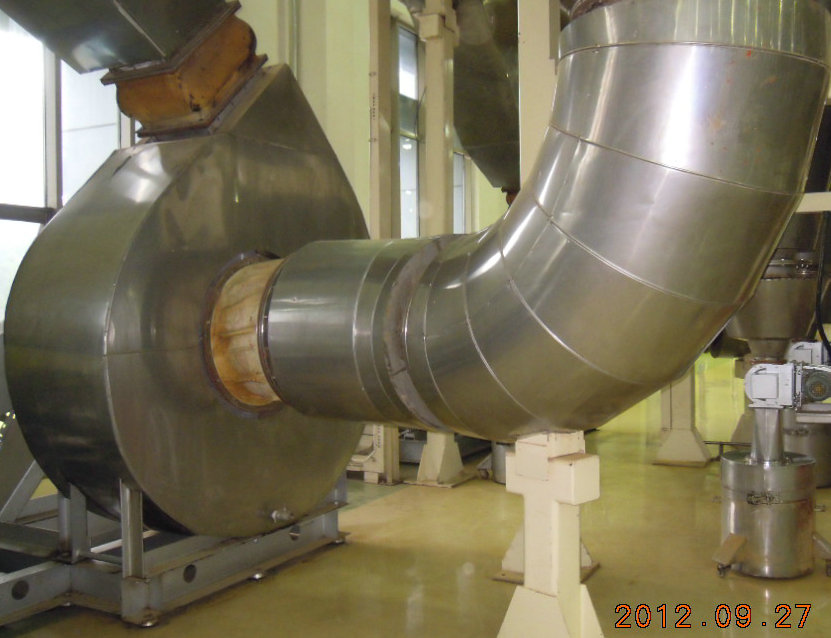

| 4-72、B4-72中低压离心风机
|
| 发布：2014-12-12 更新：2015-03-24 浏览：次 |
|
 |
一.用途：
4-72型离心通风机可作为一般工厂及大型建筑物的室内通风换气用，输送空气和其它不自燃的、对人体无害的、对钢材无腐蚀性的气体。B4-72型风机可作为易燃挥发性气体的通风换气用。气体内不许有粘性物质，所含尘土及硬质颗粒物不大于150毫克/立方米。气体温度不得超过80摄氏度。
B4-72型风机的性能与选用件及地基尺寸与4-72一致，可按其选择。该风机结构基本与4-72型相同，电动机选用与Y 系列对应的YB系列。
二．特点：
空气性能好、效率高、运转平稳。
|
机号
No
|
转速
r/min
|
流量
m3/h
|
全压
pa
|
内功率
kw
|
所需功率
kw
|
|
4-72No2.8A
|
2900
|
1131-2356
|
606-994
|
0.45-0.57
|
0.67-0.80
|
|
4-72No3.2A
|
2900
|
1688-3517
|
792-1300
|
0.88-1.13
|
1.23-1.47
|
|
4-72No3.2A
|
1450
|
844-1758
|
198-324
|
0.11-0.14
|
0.16-0.21
|
|
4-72No3.6A
|
2900
|
2664-5268
|
989-1578
|
1.56-1.95
|
2.03-2.52
|
|
1450
|
1335-2634
|
247-393
|
0.20-0.24
|
0.29-0.36
|
|
4-72No 4A
|
2900
|
4012-7419
|
1320-2014
|
2.89-3.49
|
3.47-4.19
|
|
1450
|
2006-3709
|
329-501
|
0.36-044
|
0.54-066
|
|
2900
|
5712-10562
|
1673-2554
|
5.21-6.30
|
6.00-7.24
|
|
4-72No4.5A
|
1450
|
2856-5281
|
416-634
|
0.65-0.79
|
0.91-1.10
|
|
4-72No 5A
|
2900
|
7728-15455
|
2019-3187
|
8.72-11.22
|
10.02-12.90
|
|
1450
|
3864-7728
|
502-790
|
1.09-1.40
|
1.42-1.82
|
|
4-72No 6A
|
1450
|
6677-13353
|
724-1139
|
2.71-3.49
|
3.25-4.19
|
|
960
|
4420-8841
|
317-498
|
0.79-1.01
|
1.10-1.40
|
|
4-72No 6D
|
1450
|
6677-13353
|
724-1139
|
2.71-3.45
|
3.32-4.27
|
|
960
|
4420-8841
|
317-498
|
0.79-1.01
|
1.12-1.35
|
|
4-72No 8D
|
1450
|
15826-29344
|
1490-2032
|
11.42-14.71
|
13.41-17.26
|
|
960
|
10478-19482
|
651-887
|
3.32-4.27
|
4.06-5.23
|
|
730
|
7968-14773
|
376-512
|
1.46-1.88
|
1.93-2.49
|
|
4-72No 10D
|
1450
|
40441-56605
|
2523-3202
|
41.00-46.86
|
48.12-54.98
|
|
960
|
26775-37476
|
1104-1395
|
11.9-13.60
|
13.96-15.96
|
|
730
|
20360-28497
|
637-805
|
5.23-5.92
|
6.14-7.02
|
|
4-72No 12D
|
960
|
46267-64759
|
1593-2013
|
29.61-33.84
|
34.75-39.71
|
|
730
|
35182-49244
|
919-1160
|
13.02-14.88
|
15.28-17.46
|
|
4-72No6C
|
2240
|
10314-20628
|
1733-2734
|
10.00-12.87
|
12.10-15.57
|
|
2000
|
9209-18418
|
1380-2176
|
7.11-9.136
|
8.61-11.09
|
|
1800
|
8288-16576
|
1116-1760
|
5.19-6.68
|
6.28-8.08
|
|
1600
|
7364-14734
|
881-1389
|
3.64-4.69
|
4.60-5.92
|
|
4-72No8C
|
1800
|
19646-36427
|
2302-3143
|
21.85-28.13
|
26.45-34.05
|
|
1600
|
17463-32380
|
1816-2478
|
15.35-19.76
|
18.58-23.59
|
|
1250
|
13643-25297
|
1106-1507
|
7.32-9.42
|
8.86-11.40
|
|
1120
|
12224-22666
|
887-1209
|
5.26-6.78
|
6.378.20
|
|
1000
|
10914-20237
|
707-963
|
3.75-4.82
|
4.73-5.87
|
|
900
|
9823-18213
|
572-779
|
2.73-3.52
|
3.45-4.44
|
|
800
|
8732-16190
|
452-615
|
1.92-2.47
|
2.42-3.12
|
|
710
|
7749-14368
|
356-485
|
1.34-1.73
|
1.84-2.36
|
|
630
|
6876-12749
|
280-381
|
0.94-1.21
|
1.38-1.65
|
|
4-72No10C
|
1250
|
34863-48797
|
1877-2373
|
26.27-30.02
|
31.80-36.34
|
|
1120
|
31237-43722
|
1505-1902
|
18.90-21.59
|
22.87-26.14
|
|
1000
|
27890-39038
|
1199-1514
|
13.45-15.37
|
16.2818.60
|
|
900
|
25101-35134
|
970-1225
|
9.81-11.20
|
11.87-13.56
|
|
800
|
22312-31230
|
766-967
|
6.89-7.87
|
8.34-9.53
|
|
710
|
19802-27717
|
603-761
|
4.81-5.50
|
5.83-6.66
|
|
630
|
17571-24594
|
475-599
|
3.36-3.83
|
4.25-4.85
|
|
560
|
15618-21861
|
375-473
|
2.36-2.70
|
2.98-3.38
|
|
500
|
13945-19519
|
299-377
|
1.68-1.92
|
2.30-2.56
|
|
4-72No12C
|
1120
|
53978-75552
|
2172-2746
|
47.02-53.73
|
56.92-65.04
|
|
1000
|
48195-67457
|
1729-2185
|
33.47-38.25
|
40.51-46.30
|
|
900
|
43375-60712
|
1399-1767
|
24.40-27.88
|
29.53-33.75
|
|
800
|
38556-53966
|
1104-1395
|
17.14-19.58
|
20.74-23.70
|
|
710
|
34218-47895
|
869-1097
|
11.98-13.69
|
14.50-16.57
|
|
630
|
30362-42498
|
684-863
|
8.37-9.56
|
10.13-11.58
|
|
560
|
26989-37776
|
540-682
|
5.88-6.72
|
7.11-8.13
|
|
500
|
24097-33728
|
430-543
|
4.18-4.78
|
5.28-5.98
|
|
450
|
21687-30356
|
348-440
|
3.05-3.49
|
3.85-4.40
|
|
400
|
19278-26983
|
275-347
|
2.14-2.45
|
2.71-3.09
|
|
4-72No16B
|
900
|
102810-143910
|
2497-3157
|
102.81-117.48
|
124.45-142.84
|
|
800
|
91392-127920
|
1969-2489
|
72.21-82.52
|
87.41-99.89
|
|
710
|
81110-113520
|
1549-1957
|
50.48-57.68
|
61.10-69.83
|
|
630
|
71971-100730
|
1218-1538
|
35.27-40.30
|
42.69-48.31
|
|
560
|
63974-89544
|
961-1214
|
24.77-28.30
|
29.98-34.26
|
|
500
|
57120-79950
|
766-967
|
17.63-20.15
|
21.34-24.39
|
|
450
|
51408-71955
|
620-783
|
12.85-14.69
|
15.56-17.78
|
|
400
|
45696-63960
|
490-618
|
9.03-10.31
|
10.93-12.48
|
|
355
|
40555-56764
|
386-487
|
6.31-7.21
|
7.64-8.73
|
|
315
|
35985-50368
|
303-383
|
4.41-5.04
|
5.57-6.10
|
|
4-72No20B
|
710
|
158410-221730
|
2427-3069
|
154.04-176.03
|
186.46-213.08
|
|
630
|
140560-196750
|
1908-2411
|
107.62-122.98
|
130.27-148.86
|
|
560
|
124950-174890
|
1505-1902
|
75.59-86.37
|
91.50-130.54
|
|
500
|
111560-156150
|
1199-1514
|
53.80-61.48
|
65.13-74.42
|
|
450
|
100400-140530
|
970-1225
|
39.22-44.82
|
47.48-54.25
|
|
400
|
89250-124920
|
766-967
|
27.55-31.48
|
33.34-38.10
|
|
355
|
79209-110860
|
603-761
|
19.26-22.00
|
23.31-26.64
|
|
315
|
70284-98376
|
475-599
|
13.45-15.37
|
16.28-18.62
|
|
280
|
62475-87445
|
375-473
|
9.45-10.80
|
11.44-1307
|
|
250
|
55781-78076
|
299-377
|
6.73-7.68
|
8.14-9.30
|
|
| |
|
